Columnar On/Off

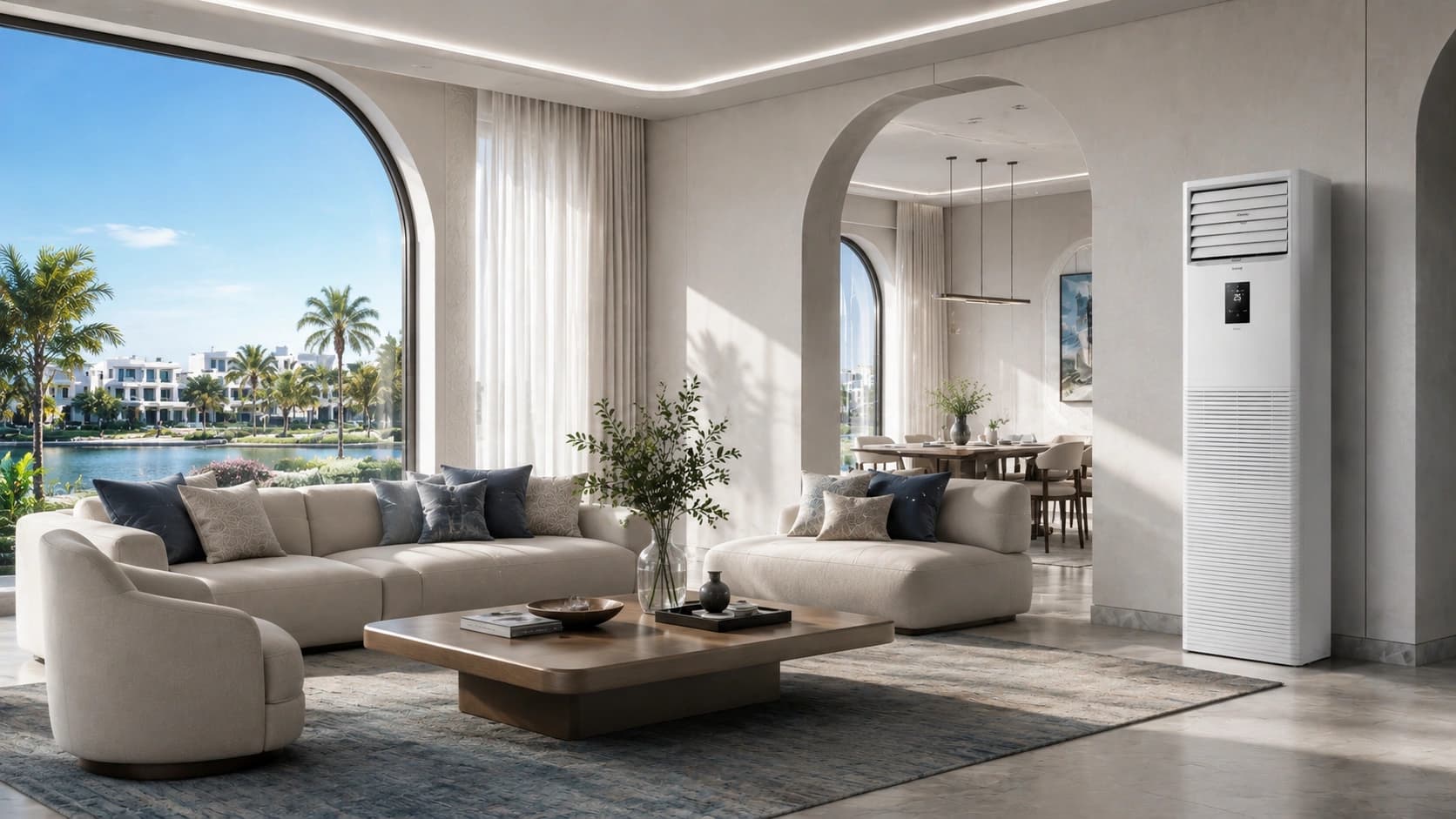

BRAC-CO-OHT3-36-R4Designed for reliable performance in hot climates, the Floor-standing T3 system delivers powerful cooling, wide air distribution, and stable comfort for large spaces. Advanced air purification technologies and optimized airflow create a cleaner, quieter, and more comfortable indoor environment even during extreme heat conditions.
A
Features — Columnar On/Off
Tropical Inverter Compressor
Ensures comprehensive air distribution by integrating horizontal and vertical airflow for balanced cooling or heating.
Gradually adjusts the temperature to meet sleep needs, ensuring optimal comfort while cooling or heating.
Automatically restores the previous operating mode and settings after a power outage, without any manual intervention.
Maintains reliable, powerful cooling performance even when outdoor temperature reaches +60°C, designed for extreme desert climates.
Delivers consistent and powerful airflow across extended distances, ensuring effective cooling or heating even in large or elongated spaces
Built for Extreme Heat. Engineered to Never Stop.
T3 certified split ACs are purpose-built for the tropics and deserts — regions where temperatures exceed 45°C for months and ordinary AC simply fails.
43°C
T1 Standard60°C
T3 Tropical52–60°C
Extreme Heat Stability
Full cooling power at 52–60°C ambient. Standard T1 units trip at 43°C — T3 keeps running through the hottest part of the day.
24 / 7
Non-Stop Operation
Built for months of uninterrupted cooling during tropical summers. No performance drop, no heat-protection shutdowns.
80–90%
Tropical Humidity
Effective dehumidification in persistently sultry environments. Keeps the room cool and dry even at high relative humidity.
T3
Tropical Regions Ready
Certified for the Middle East, Southeast Asia, and Africa — climates where ordinary air conditioners consistently underperform.

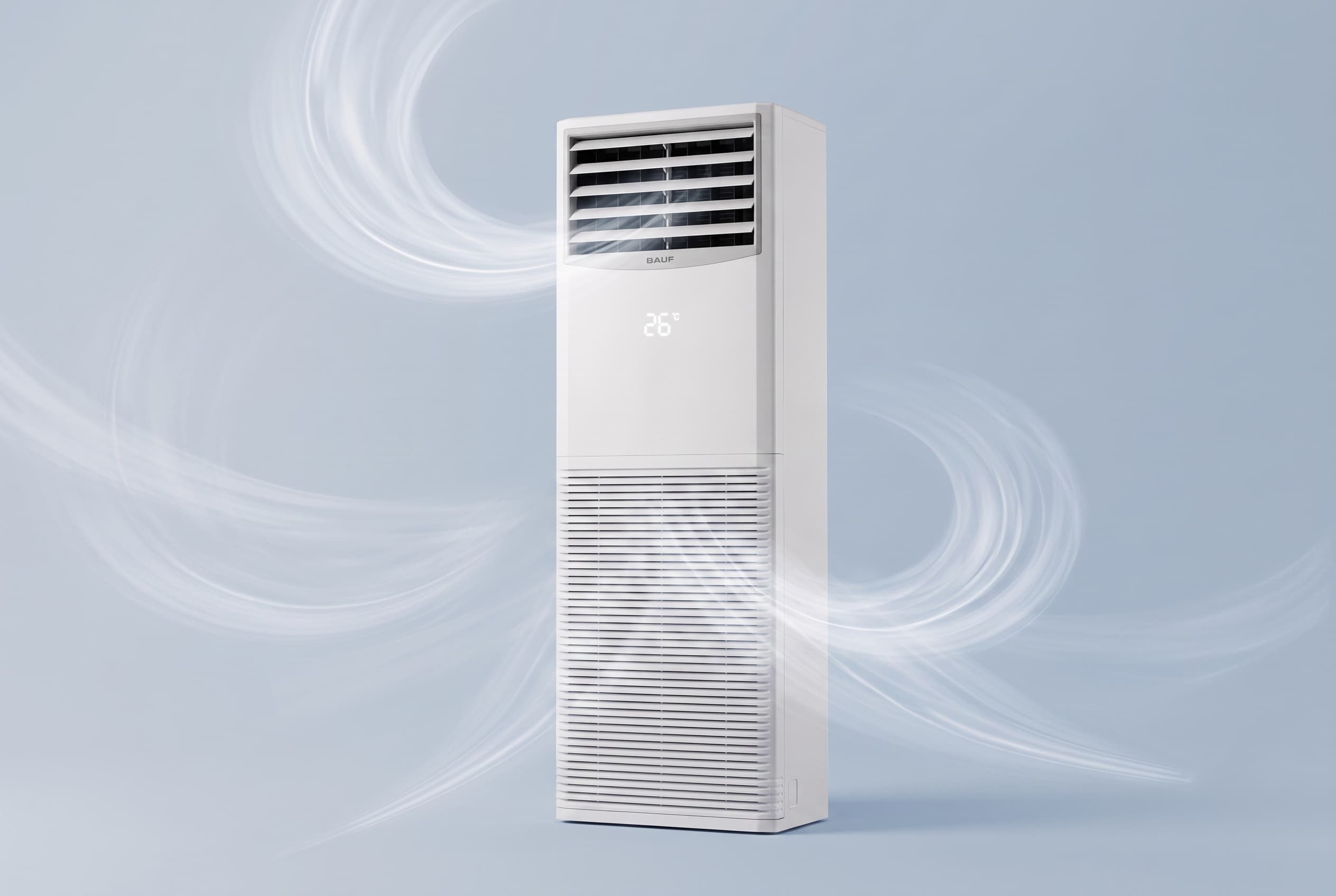

4D AIR FLOW
Helps to improve air distribution and flow, makes you feel more comfortable
High quality dc inverter compressor enhances air distribution and flow throughout your space, ensuring comprehensive comfort. This advanced feature directs air in all directions—up, down, left, and right—creating a uniform and consistent temperature. By eliminating hot and cold spots, 4D AIR FLOW ensures that every corner of the room feels equally comfortable, providing a more pleasant and balanced indoor environment for ultimate relaxation and well-being.
Reaches every corner of the room.
The floor-standing T3 Inverter delivers powerful airflow up to 12–15 metres — covering large open spaces commonly found in tropical homes, lobbies, and commercial premises.
15 m
Maximum air supply distanceFloor-to-ceiling
airflow distribution4D
directional louvers7
fan speed levelsTurbo
rapid coverage mode
Self-diagnosis
Auto restart
Intelligent defrost system
Golden fin
Specifications
BRAC-CO-OHT3-36-R4Energy Classification | A | |||
|---|---|---|---|---|
Rated cooling capacity | kW | 8,91 | ||
Rated heating capacity | kW | 10,31 | ||
Power Supply | 220~240V 50Hz | |||
Cooling Rated Input Power | kW | 3,79 | ||
Heating Rated Input Power | kW | 3,2 | ||
EER | 2,35 | |||
Indoor sound pressure level | dB(A) | 50/48/46 | ||
Outdoor sound pressure level | 62 | |||
Refrigerant Type | R410A | |||
Connecting pipe gas | inch | 3/4 | ||
Connecting pipe liquid | inch | 3/8 | ||
Max. refrigerant pipe length | m | 30 | ||
Max. difference in level | m | 15 | ||
Ambient temp. range outdoor (Cooling) | ℃ | 10~52 | ||
Ambient temp. range outdoor (Heating) | ℃ | -15~24 | ||
Net dimensions (W х D х H) indoor | mm | 350×600×1850 | ||
Net dimensions (W) indoor | mm | 350 | ||
Net dimensions (D) indoor | mm | 600 | ||
Net dimensions (H) indoor | mm | 1850 | ||
Net dimensions (W х D х H) outdoor | mm | 948×340×1250 | ||
Net dimensions (W) outdoor | mm | 948 | ||
Net dimensions (D) outdoor | mm | 340 | ||
Net dimensions (H) outdoor | mm | 1250 | ||
Net weight indoor | kg | 55 | ||
Net weight outdoor | kg | 101 | ||
